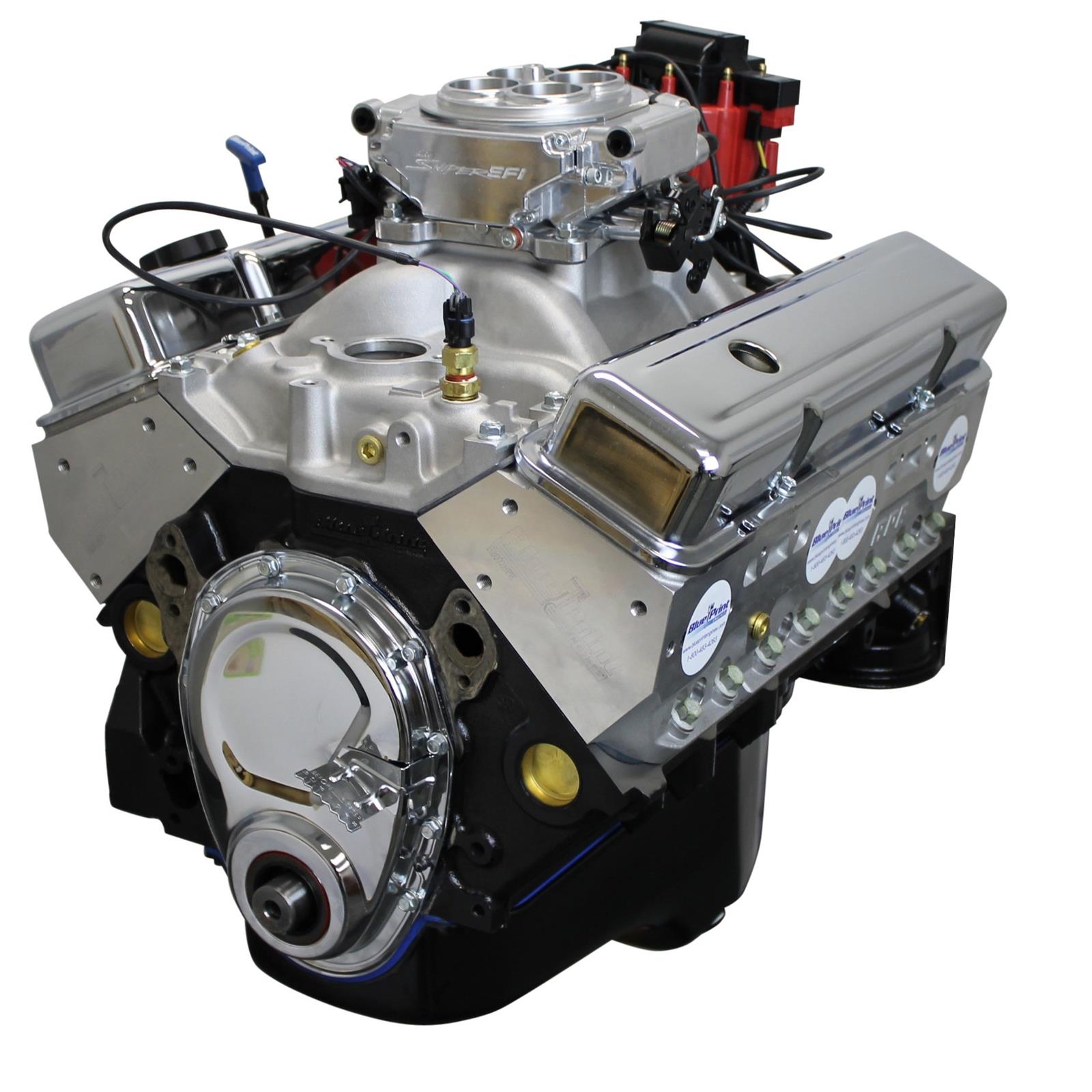

BluePrint BP38318CTF1 383CI Stroker Crate Engine, Fully Dressed
BluePrint BP38318CTF1 383CI Stroker Crate Engine, Fully Dressed is a engine assembly listing intended for buyers seeking a specific replacement, restoration, or performance application. Review the model and configuration details carefully before ordering to ensure the correct match for your vehicle or build.
Product Highlights
- New Block Casting BluePrint Engines 383CI Stroker Crate Engine
- Dressed Longblock with Fuel Injection
- Aluminum Heads
Technical Specifications

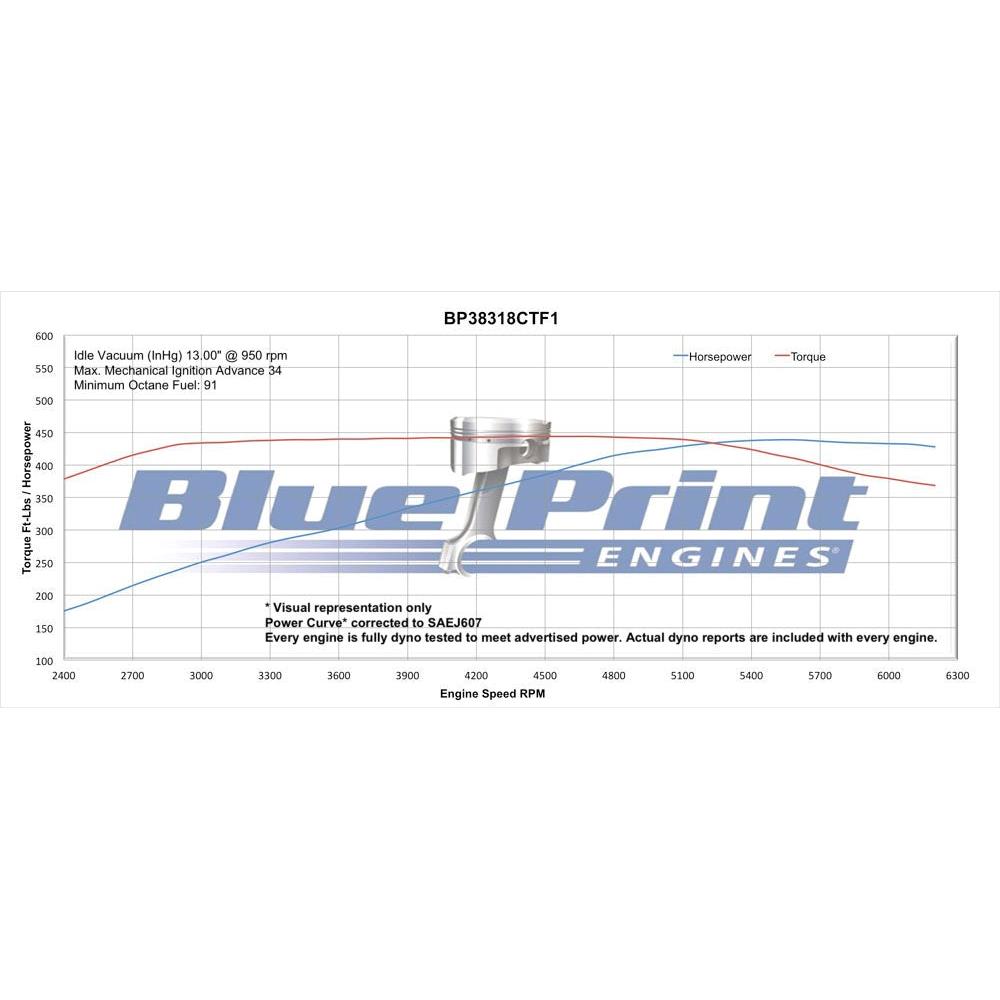

| Roller Cam HP & Torque | 436 HP / 443 FT LBS Compression Ratio: 10.0:1 Aluminum Heads Hydraulic Roller Cam Cast Steel Crank Hypereutectic Pistons BLOCK: NEW BluePrint Cast Iron Block Manufactured and Machined in the USA! 4-Bolt Main 4.000" 1-Piece Rear Main Seal Mech fuel pump provision: Yes Passenger Side Dipstick Drilled and tapped for clutch linkage ROTATING ASSEMBLY: New BluePrint Cast steel crankshaft 3.750" Stroke OEM type 5.700" connecting rods w/ 150,000 psi bolts Hypereutectic pistons External Front/ External Rear balance CYLINDER HEADS: BluePrint Aluminum Cylinder Heads – H8002K 64cc chamber 2.02" intake/1.60" exhaust valves 195cc intake/75cc exhaust runners CAM SPECS: Cam Type: Roller .544 Intake .555 Exhaust 230 Intake / 236 Exhaust duration @ .050, 110 ° lobe separation angle IGNITION TIMING: Initial timing – 10-16° and Total timing 32-34° ALSO INCLUDES: Intake Manifold Oil Pan Valve Covers Timing Cover WARRANTY: 30 month / 50,000 mile NOTES: Not for EGR. Recommended Oil: BPP710 BluePrint Crate Engine Break In Oil Recommended Harmonic Balancer: BPP400 Recommended Stall Converter: 2000 to 2400 RPM. Recommended Fuel: 91 Octane. Engine package does not include fuel pump. Engine is configured to run in fuel only mode. The Aftermarket intake manifold installed on this engine may not be compatible with OEM accessory brackets that use intake mounted bosses. This engine features a true 4 inch bore, which mathematically yields 377 CID with a 3.75 inch stroke, SpecificationsEngine Displacement: 6.3 litersHorsepower: 438 horsepowerCompression Ratio: 10.0:1Camshaft Type: Hydraulic Roller TappetCylinder Head Material: AluminumPiston Material: Hypereutectic AluminumCarburetor Included: YesIntake Manifold Included: YesDistributor Included: YesValve Covers Included: YesEngine Balance: ExternalCylinder Heads Included: YesRear Main Seal Style: 1-pieceThrottle Body Included: NoOil Pan Included: YesTiming Cover Included: YesWater Pump Included: YesHarmonic Balancer Included: YesFlexplate Included: NoFlywheel Included: NoAir Cleaner Included: YesSpark Plugs Included: YesSpark Plug Wires Included: YesComputer Included: NoWiring Harness Included: NoMFG. Part #: BP38318CTF1Notes: Recommended oil for your BluePrint Crate Engine: 10W30, Non-Synthetic, Not for EGRBrand: BluePrint Engines Emissions NoticeEmissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine |
|---|---|
| Product name | BluePrint BP38318CTF1 383CI Stroker Crate Engine, Fully Dressed |
| Store SKU | dc4464893e6c |
Compatibility & Fitment
Engine compatibility depends on vehicle year, engine family, mounts, accessories, sensors, fuel delivery and emissions equipment. Verify the exact assembly configuration and required supporting parts before purchase.
What’s Included
Package contents depend on the exact manufacturer part number and whether the listing is a complete assembly, long block, short block, bare block, or transmission package. Only components explicitly stated in the product specifications or confirmed by the seller should be considered included.
Installation & Care
Follow the manufacturer’s installation, fluid, break-in, and maintenance instructions. Inspect all mating components and connections before first operation. Use the fluids and consumables specified for the exact application.
Warranty Information
Warranty coverage, duration, exclusions and any core-return requirements must be confirmed for this exact product before purchase. A 3-year store warranty should be advertised only if it is actually offered for this SKU under published store terms; manufacturer warranty may differ.
Important Product Information
Photos may show optional or illustrative components. Fitment, stock status, shipping requirements and installation accessories should be confirmed before ordering. Professional installation is recommended where applicable.
Reviews
There are no reviews yet.
